Chevron Belts
Reliable Inclined Conveying with High-Grip Chevron Profiles
Chevron Belts are specially designed conveyor belts for transporting materials at steeper inclinations where conventional plain conveyor belts may experience material rollback or slippage. The specially moulded Chevron/Cleated profile provides improved grip on the conveyed material, allowing efficient and controlled movement across inclined conveyor systems.
Plain conveyor belts are generally suitable for conveying applications with limited inclination. As the conveyor angle increases, loose materials may tend to roll back, reducing conveying efficiency. Chevron Belts overcome this limitation by providing a profiled surface that helps retain material and maintain a continuous flow during transportation.
Why Choose Chevron Belts
Our Chevron Conveyor Belts are manufactured with specially designed profiles selected according to material, conveyor inclination, and application requirements:
Suitable only for applications with limited inclination. As the conveyor angle increases, loose materials tend to roll back, reducing conveying efficiency.
A profiled Chevron/Cleated surface helps retain material and maintain a continuous flow, enabling efficient conveying on steeper inclined systems.
Key Features of Chevron Belts

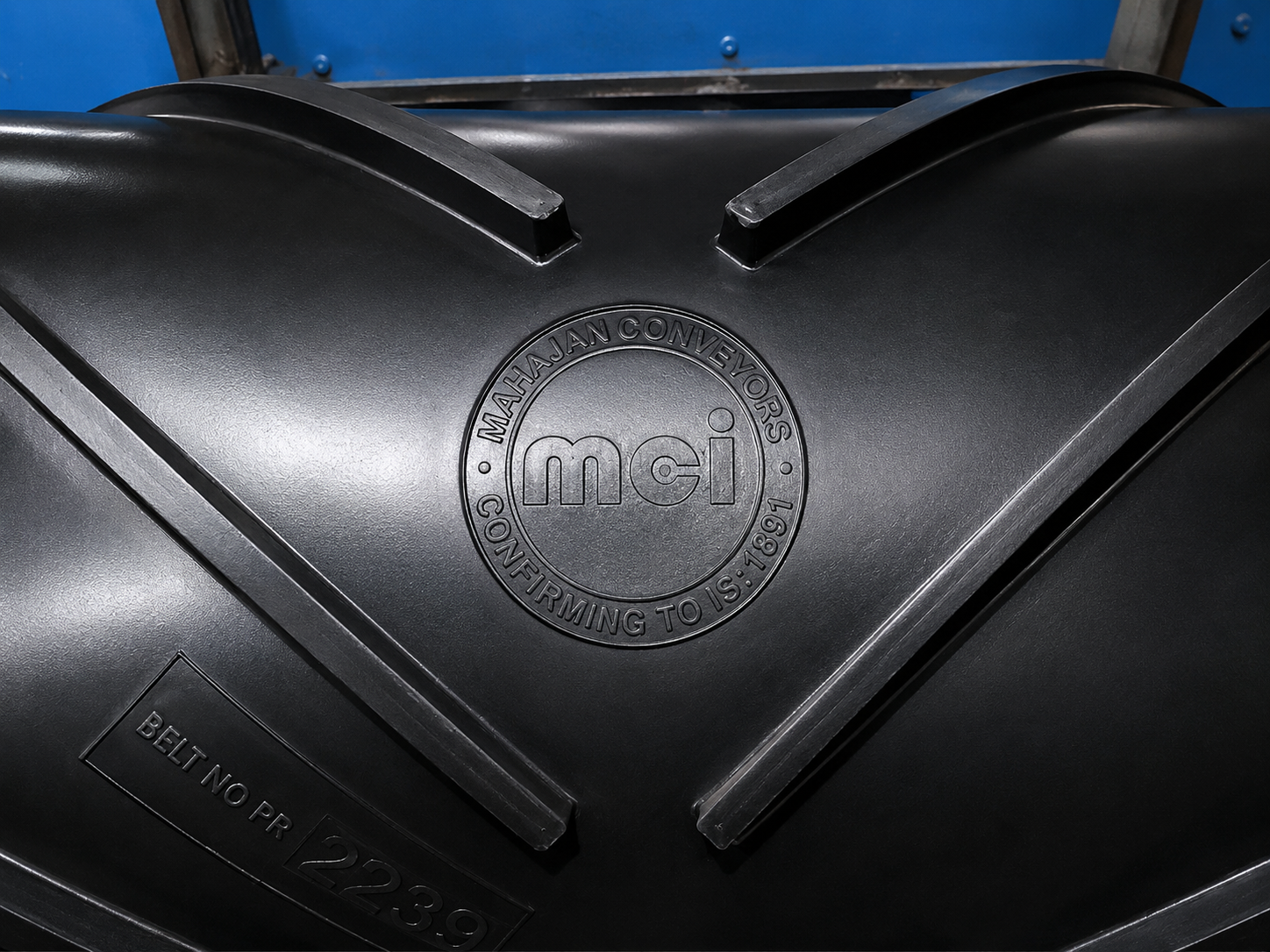

Moulded Chevron Profiles
Specially moulded Chevron profiles for improved grip on the conveyed material.
Suitable for Inclined Conveying
Engineered for applications requiring steeper conveyor inclinations.
Reduced Material Rollback
Helps reduce material rollback during transportation on inclined systems.
Multiple Profile Patterns
Available with different profile patterns and cleat heights to suit your conveying needs.
Efficient Bulk Handling
Designed for efficient handling of loose and bulk materials across industries.
Wide Application Range
Suitable for a wide range of industrial applications and conveyor configurations.
Widths from 400–1200 mm
Available in a range of widths to match your conveyor system requirements.
Cut or Moulded Edges
Can be supplied with cut or moulded edges as per your requirement.
Durable Rubber Compounds
Manufactured using quality rubber compounds for durability and reliable performance.
Profiles from 30°–40°
Available with profiles ranging approximately from 30° to 40°, depending on application requirements.

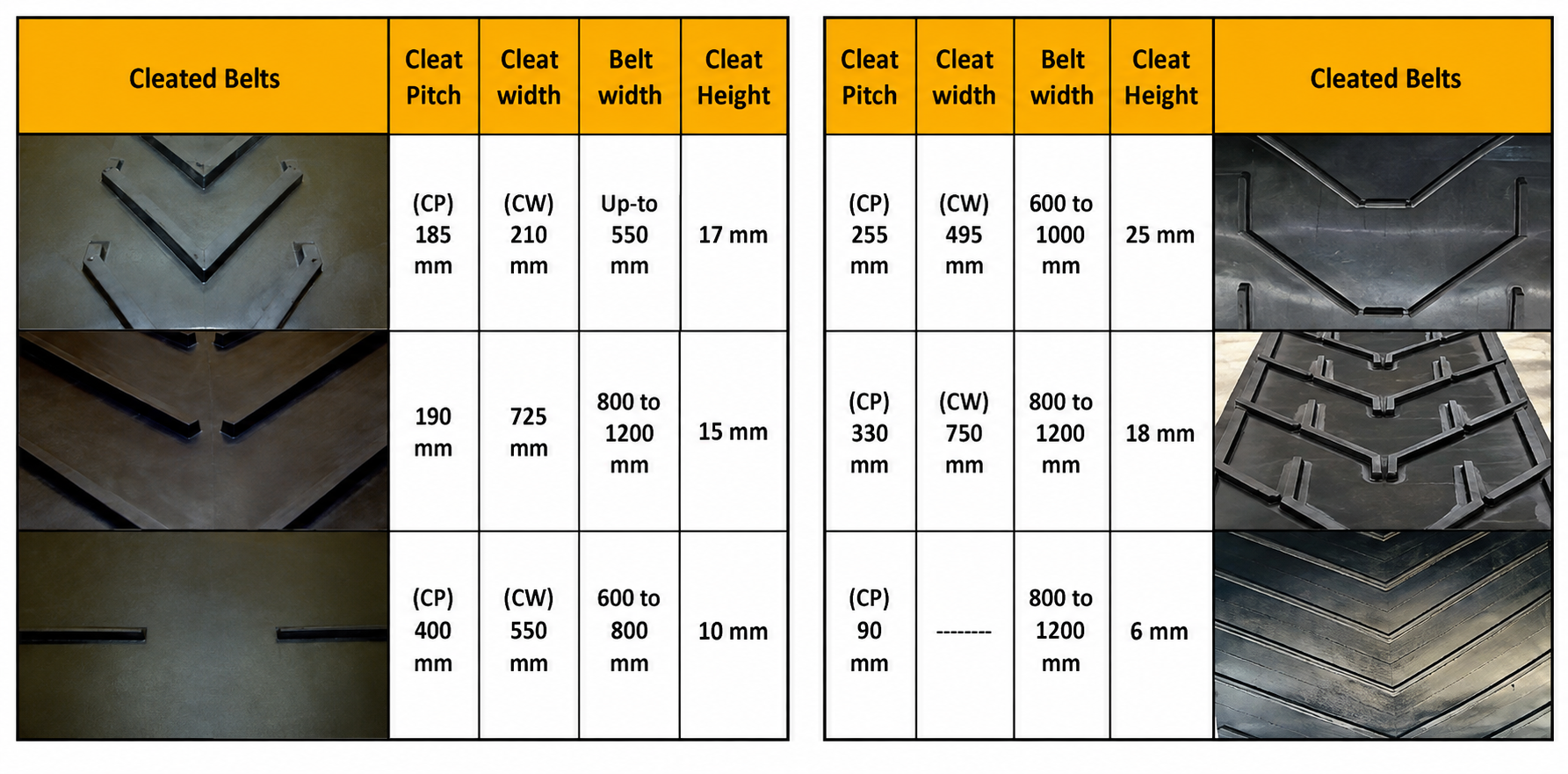

Chevron Belt Patterns
Different Chevron patterns are available to accommodate varying material characteristics, conveyor speeds, and inclination requirements. Profile dimensions can be selected according to the application and required conveying performance.
Profile dimensions and availability may vary according to the selected belt pattern and application.
Recommended Inclination
The suitable inclination depends on the type of material, moisture content, particle size, material flow characteristics, cleat profile, and cleat height.
| Type of Material | Material to be Conveyed | 16 mm Cleat | 25 mm Cleat | 32 mm Cleat |
|---|---|---|---|---|
| Powdery | Flour, Lime etc. | 25° | 28° | 30° |
| Loose Flowing | Grains, Corn, Barley, Wheat, Dry Sand | 20–25° | 25–30° | 25–30° |
| Packed | Paper Sacks, Jute Sacks | 30–35° | 35–40° | 35–40° |
| Sticky | Wet Sand, Ash | 30–35° | 35–40° | 40–45° |
| Loose Rolling | Ground Stone, Gravel | 25° | 28° | 30° |
Suitable Industries & Applications
Chevron Belts are suitable for a variety of bulk material handling applications, including:
Ceramic Industries, Steel Plants, Power Plants, RMC Plants, Road Construction, Crushers, and Glass Industries.
Flour, lime, grains, corn, barley, wheat, dry sand, paper sacks, wet sand, ash, ground stone, and gravel — depending on the selected belt profile and conveyor configuration.
Chevron Belts at a Glance
With multiple profile options, cleat heights, and belt widths, Chevron Conveyor Belts can be selected according to the specific requirements of the conveying system. The profiled surface provides better material retention and supports smooth transportation on inclined conveyors.
| Parameter | Technical Standard / Range |
|---|---|
| Available Belt Width | 400 mm to 1200 mm |
| Profile Range | Approximately 30°–40° |
| Edge Options | Cut Edge / Moulded Edge |
| Applications | Inclined Conveying & Bulk Material Handling |
